Getting radiator brackets dead level by eye or a tape measure alone leaves gaps under the unit and pulls the valve tails out of line. A laser level for radiator installation squares the whole job in minutes, whether you're fitting one towel rail or eight radiators across a full rewire in 2026.
- Using a laser level for radiator installation puts every bracket on one true line instead of stacked tape-measure marks.
- The Grettz G2D Mini Cross Line Laser handles single-radiator and towel rail jobs at £64.99 - buy it.
- Back-check short walls under 1.2m with a digital spirit level like the Grettz GL120 rather than trusting the laser beam alone.
- Skip non-self-levelling laser pointers on stud walls in 2026; they drift and throw brackets out by several millimetres over a run.
Why this matters
A radiator hung 3mm out of level over a 600mm width barely shows. Hang it 3mm out over a 1600mm double-panel run and the gap under one end is visible from across the room, and the valve tails won't sit square to the pipe stubs.
A radiator tilted the wrong way traps air at the top corner, which means more bleeding regardless of how high the thermostat goes. A laser level for radiator installation removes the guesswork: project one line, mark every bracket off it, done. Grettz builds cross-line lasers for exactly this kind of short-run indoor work, not just groundworks and roofing.
What you'll need
- Self-levelling cross-line laser - the Grettz G2D Mini Cross Line Laser covers most single-room jobs and projects both a level line and a plumb line
- Tape measure or steel rule for bracket spacing and centring the radiator
- Pencil, masking tape, and a wall surface checked for lumps or old fixings before you start
- Drill, wall plugs and the radiator's own fixing brackets
- Digital spirit level - the Grettz GL120 1200mm Digital Spirit Level as a back-check on walls too short for a clean laser throw
- 20 to 30 minutes per radiator once the laser is set up, plus a few seconds for the unit to settle and self-level
The steps
1. Find and mark the radiator's true centre line
This establishes the single reference point everything downstream depends on. Get the centre wrong and every bracket you mark off it is wrong too.
Measure the radiator's total width, halve it, and mark the centre point on the wall in pencil. Then measure down from that point using the radiator's own fixing template rather than guessing a standard drop.
Expected outcome: one pencil mark at the correct height and horizontal centre. Common mistake: measuring from a skirting board that isn't level itself - only use the floor as your reference if it's genuinely flat.
2. Set the laser level roughly at bracket height
This gets the beam close to working height before fine-tuning starts. Self-levelling lasers correct small tilt automatically, but if the unit is wedged hard against a wall or a low windowsill, it can't level itself fast enough.
Mount the laser on a tripod or a stable ledge close to bracket height - most UK fitters set radiator brackets around 150mm above finished floor level, though the manufacturer's template overrides that rule of thumb. Give the unit a few seconds to settle. If you're working without a tripod, the guide on mounting a laser level indoors covers stable alternatives.
Expected outcome: a bright, steady cross-line projected onto the wall. Common mistake: balancing the laser on a wobbly stepladder tray - any movement during levelling throws the line off after you walk away.

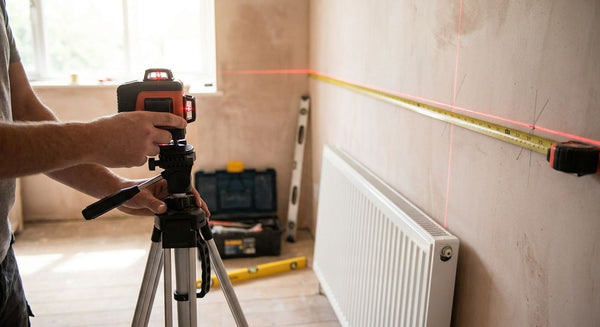

3. Project the level line across all bracket positions
This is the entire reason to use a laser instead of a tape measure - one reference line, zero cumulative error across the run.
Rotate or reposition the unit until the horizontal line reaches every bracket zone you need, checking the beam doesn't fade out before the far end.
Expected outcome: a continuous, visible line across the whole bracket zone. Common mistake: not checking beam visibility at the far end in a bright room - a south-facing window washes out a red beam fast, which is where a green-beam unit earns its keep.
4. Mark bracket screw positions off the laser line
Marking off the laser, not off a tape measure run from the first bracket, stops small errors compounding across three or four fixing points.
Hold a pencil against the laser line at each bracket location, mark the top hole first, then use the bracket's own template for hole spacing.
Expected outcome: identical height marks at every bracket position, confirmed against the line rather than against each other. Common mistake: nudging the tape measure between marks instead of re-referencing the laser line each time.
5. Drill, plug and fix the top bracket first
A loosely fixed bracket lets you nudge position by a millimetre or two if the laser catches a discrepancy before it's locked in place.
Drill to the wall plug manufacturer's depth, insert plugs, fix the top bracket loosely, then recheck it against the laser line before fully tightening.
Expected outcome: top bracket fixed and confirmed level against the projected line. Common mistake: fully tightening before rechecking - once it's torqued down, adjustment means re-drilling.
6. Fit the second and any additional brackets against the same line
Resetting the laser between brackets reintroduces the exact error the laser was meant to remove in the first place.
Repeat the drill-and-check process for every bracket on that radiator, keeping the laser running rather than switching it off between fixings.
Expected outcome: all brackets level to each other and to the laser line, not just level to their neighbour. Common mistake: switching the laser off to save battery between brackets - most self-levelling units run for hours on a charge, so leave it on.
7. Hang the radiator and back-check with a digital spirit level
Brackets can be individually level and the radiator can still sit slightly proud if one bracket isn't fully seated.
Lift the radiator onto the brackets, then run a digital spirit level along the top edge and check the display reads close to 0.0°.
Expected outcome: radiator reads flat end to end, valve tails line up square to the pipe stubs. Common mistake: trusting the laser line alone on the final check - a physical level against the fitted radiator catches seating issues the laser can't see once the unit is hung.
Troubleshooting
- Beam too faint to see in a bright room - switch to a green-beam laser or work with curtains drawn; green beams read up to four times brighter to the human eye than red.
- Bracket marks drift on hollow stud walls - confirm you've hit the stud centre, not just plasterboard, before drilling; a laser line marked correctly still means nothing if the fixing has no timber behind it.
- Laser won't settle or keeps flashing - the wall or floor is outside the unit's self-levelling range; move the tripod to flatter ground rather than forcing a reading.
- Radiator sits proud at one end despite level brackets - one bracket isn't fully seated on its wall plug; unhook that end and reseat it rather than packing the radiator with washers.
- Line disappears halfway across a long wall - reposition the laser centrally to the run instead of at one end; throw distance and beam brightness both drop off toward the edges.
Tools and resources
- A self-levelling cross-line laser as the primary reference for bracket height
- A digital spirit level for the final on-radiator check
- A tripod or stable mounting point at bracket height
- The radiator manufacturer's own fixing template - laser lines mark position, they don't replace the template's hole spacing
What to do next
Once the laser method clicks for one radiator, the same process carries across every radiator in the house on the same fixing run. If you're working on heating pipework as well as brackets, the notes on laser levels for plumbers and heating engineers cover setting pipe falls and manifold positions with the same tool.
FAQ
What's the best laser level for radiator installation?
A self-levelling cross-line laser is the right tool for radiator installation, not a rotary laser. The Grettz G2D Mini Cross Line Laser at £64.99 covers single radiators and towel rails; a multi-line unit like the Grettz G4D suits several radiators on one wall run.
Can I use a laser level instead of a spirit level for radiators?
A laser level replaces the tape-measure marking-out step, but a digital spirit level still earns its place as a final check once the radiator is hung. Brackets can read level individually and still sit slightly proud if one isn't fully seated.
How high should radiator brackets be fitted from the floor?
Most UK fitters set the bottom bracket around 150mm above finished floor level, but the radiator manufacturer's fixing template takes priority over that rule of thumb. Always confirm hole spacing against the template before drilling.
Do I need a laser detector for radiator work?
No. Laser detectors are for outdoor or long-range rotary laser work where the beam isn't visible to the eye. Indoor cross-line lasers project a visible beam you read directly off the wall.
Is a rotary laser overkill for radiator installation?
Yes, for a domestic install. Rotary lasers are built for groundworks, foundations and long outdoor runs; a cross-line laser is faster to set up and cheaper for indoor bracket work.
How do I check my laser level is accurate before fitting a radiator?
Project the line onto a wall, mark it, rotate the laser 180 degrees, and project again from the same spot. If the two marks don't match, the unit needs recalibrating before you trust it on a job in 2026.
What's the standard bracket spacing for a double radiator?
Bracket spacing varies by radiator width and the manufacturer's own template, so there's no single fixed figure - always work from the template rather than a generic measurement.
How much does a laser level for radiator fitting cost in 2026?
A compact self-levelling cross-line laser suitable for radiator work starts around £64.99 in 2026, with multi-line kits for larger jobs running higher depending on features.
One last thing
The single biggest fixing error on radiator jobs isn't a bad laser reading - it's re-marking off the previous bracket instead of going back to the laser line every time. Once you've drilled the top bracket, resist measuring off it for the next one; re-reference the projected line and the whole run stays true, even across four or five radiators in one afternoon.
“Mark every bracket off the laser line, never off the last bracket you drilled - that's how small errors turn into a visibly crooked radiator.”
