How to Use a Cross Line Laser Level (2026 Guide)
Aug 19, 2026
A cross line laser level projects a level horizontal line and a plumb vertical line at the same time, so you square up and level a wall, cabinet run, or tile job in one setup instead of shifting a spirit level metre by metre. This guide covers the actual setup sequence, the drift check most people skip, and the settings that matter for indoor trade work in 2026.
- Learning how to use a cross line laser level starts with a flat base and a self-level check — skip this and every line is off.
- The Grettz G2D mini cross line laser projects usable lines to 15m indoors — buy it for kitchens and small rooms.
- Run a 60-second drift check before any job over 2m — a laser out by 3mm at 1m compounds fast.
- Green beam units read easier in daylight than red beam, but red still wins on battery life for long site days.
- Mount on a tripod, not a shelf edge — vibration and uneven surfaces are the top cause of a wandering line.
Why this matters
A cross line laser level only saves time if the line it projects is actually level. Get the setup wrong and you'll chase a skirting board or a run of wall tiles that's 4-5mm out over 3 metres — invisible on day one, obvious once the grout goes in.
Most complaints about cross line lasers being "inaccurate" trace back to setup, not the tool. A unit left on an uneven worktop, knocked mid-job, or used outdoors in bright sun without a receiver will drift or wash out. The steps below fix that.
What you'll need
- A cross line laser level — the Grettz G2D mini cross line laser covers most kitchen, bathroom, and shelving jobs at 15m indoor range
- A tripod or a flat, stable surface — worktops, floors, or a laser tripod with a 5/8" thread
- A tape measure for reference marks
- A pencil or chalk line for transferring the laser line to the surface
- Fresh batteries — dimming batteries are a common cause of a line that looks fine at 2m and fades past 4m
The steps

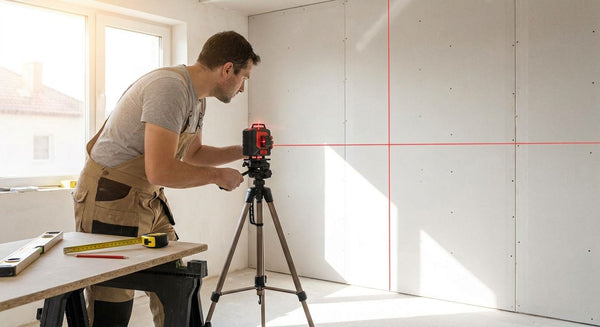

1. Set up on a flat, stable base
A cross line laser reads its own tilt sensors against whatever it's sitting on, so an uneven base gets built into every line it throws. Use a tripod on solid ground, or a section of worktop you've checked isn't rocking. Skipping this step is the single biggest cause of a line that's "close but not quite" over a long wall.
Common mistake: resting the unit on a stack of tile boxes that shift when someone walks past.
2. Power on and let it self-level
Most cross line lasers, including self-levelling models, take 3-8 seconds to settle once switched on — you'll see the line hunt slightly before it locks. Don't mark anything until the beam stops moving. If the unit beeps or flashes to indicate it's outside its self-level range (typically ±4°), reposition it rather than forcing a reading.
Common mistake: marking a line the instant the laser switches on, before it's finished self-levelling.
3. Run a 60-second drift check
Before any job over 2 metres, mark the laser line at one end of the wall, move a target 3-4m away, and check the line lands on the same mark. A laser out by 3mm at 1m becomes 9mm at 3m — enough to throw off a run of kitchen units or a tiled wall. If it's drifting, the unit needs calibrating before you trust it on a paying job.
4. Mark your reference lines
Once the beam is confirmed level, transfer it to the surface with a pencil at 2-3 points along its length, then join the dots with a straight edge rather than relying on eyeballing the beam itself in bright light. This matters more with red beam units, which wash out faster than green in daylight.
Common mistake: trying to cut or fix directly to the projected line instead of marking it first — hand and eye movement blur the beam's edge.
5. Use the cross beam to square corners
The vertical line is what separates a cross line laser from a basic line laser — use it to check a corner is plumb before boxing in a cabinet run or fitting a shower enclosure. Hold the unit so the vertical beam runs down the corner join; any gap that opens up top to bottom tells you the wall or the corner is out of square, not the laser.
6. Lock the unit before moving it
Most cross line lasers ship with a travel lock on the levelling mechanism — engage it before moving between rooms or packing the case. Transporting a laser in its working (unlocked) state is the most common cause of the internal sensor going out of calibration early.
Common mistake: tossing the laser in a tool bag between jobs without locking the pendulum.
Troubleshooting
- Line looks bent or split in two: the lens is dirty or the unit's been knocked. Clean the lens with a dry microfibre cloth and re-run the drift check before assuming it needs servicing.
- Beam washes out in daylight: switch to a green beam unit, or fit laser glasses/a detector for outdoor work — red beam is genuinely harder to see past 5-6m in sun.
- Line drifts over distance: confirm the tripod or surface is stable first; if the drift persists after that, the unit is due a calibration check.
- Self-level indicator won't lock: the surface is outside the unit's self-level range (commonly ±4°) — shim or reposition rather than forcing it.
- Battery drains fast: cross line lasers with both lines active draw more power than a single-line setting — switch off the axis you're not using to extend runtime on a long day.
- Line fine indoors, unreliable on site: you likely need a rotary laser rather than a cross line unit — cross line lasers are built for indoor range, not open groundworks.
Tools and resources
- Cross line laser: Grettz G2D mini cross line laser for kitchens, bathrooms, and shelving
- For skim coats and wall flatness checks, see the guide on using a cross line laser for plastering
- A 1200mm digital spirit level for cross-checking longer runs where a laser line alone isn't practical
- A tripod with a 5/8" thread — freestanding use on an uneven surface is the top cause of inaccurate readings reported in 2026 support queries
What to do next
If you're still deciding which unit to buy rather than how to use one, the best cross line laser level for DIY guide breaks down range, beam colour, and price against typical home projects. Come back to this page once the laser's in hand and you're ready to set it up on the actual job.
FAQ
How do you use a cross line laser level for the first time?
Set the unit on a flat, stable base, power it on, and wait 3-8 seconds for it to self-level before marking any lines. Run a drift check over 3-4 metres before trusting it on a job.
Is a cross line laser level accurate enough for tiling?
Yes, a calibrated cross line laser is accurate enough for tiling floors and walls, typically within 2-3mm over 5m indoors. Confirm accuracy with a 60-second drift check before starting a run.
What's the difference between a cross line laser and a rotary laser?
A cross line laser projects fixed horizontal and vertical lines for indoor jobs up to roughly 15-20m, while a rotary laser spins a beam 360 degrees for outdoor groundworks and foundations over longer distances. Use cross line for kitchens and shelving, rotary for site levelling.
How often should you calibrate a cross line laser level?
Check calibration every 3-6 months with regular trade use, or immediately after any knock or drop. A 60-second drift check catches most issues without sending the unit for a full service.
Can you use a cross line laser level outdoors?
You can, but red beam units wash out in daylight past 5-6m, so green beam or a laser detector works better outdoors. For open site work over longer ranges, a rotary laser is the better tool in 2026.
Why is my cross line laser level not self-levelling?
The unit is likely outside its self-level range, commonly plus or minus 4 degrees, so it needs repositioning on a flatter surface rather than forcing the lock. If it self-levels on one surface but not another, the base is the problem, not the laser.
How much does a cross line laser level cost in 2026?
Entry cross line lasers start around £65 for a mini unit with tripod, rising past £250 for multi-line kits with tripod and pole. Price scales with beam range, number of lines, and build durability.
One last thing
Most accuracy complaints on cross line lasers trace back to the base, not the unit itself — a worktop that flexes half a millimetre under weight throws the same error as a laser genuinely out of calibration. Run the drift check on the actual surface you'll be working from, not a test bench, and you'll catch the real cause before blaming the tool.
