Cross Line Laser for Cabinet Installation (2026 Guide)
Aug 31, 2026
A cross line laser projects one level horizontal line and one plumb vertical line onto the wall at the same time, giving you a single datum for an entire cabinet run instead of chalk lines and a spirit level check every 300mm. Set it once at the right height, switch it on, and every base unit and wall unit lines up to that reference without re-measuring at each joint.
- A cross line laser sets a full kitchen cabinet run to one level line in under two minutes once positioned correctly.
- Wall cabinets hang off the laser's vertical line, not the worktop edge, because worktops are rarely dead level.
- The Grettz G2D Mini Cross Line Laser suits runs under 4m; the Grettz G4D Multi-Line covers longer galley kitchens and utility rooms.
- A tripod or wall bracket beats propping the laser on offcuts once the run passes 3m.
Why this matters
A spirit level tells you one point is level. It does not tell you the next cabinet along is level with the first one, and over a 3m run that gap compounds fast. A cross line laser level removes that compounding error by projecting the same line across the full wall in one pass, so every carcass references the identical datum instead of the one next to it.
Fitters who skip this step and work cabinet-to-cabinet with a torpedo level often find the last unit in a run is 4-5mm out from the first — invisible on its own, obvious once the cornice or handles go on. Kitchen fitting in 2026 still gets judged on that last unit, not the average.

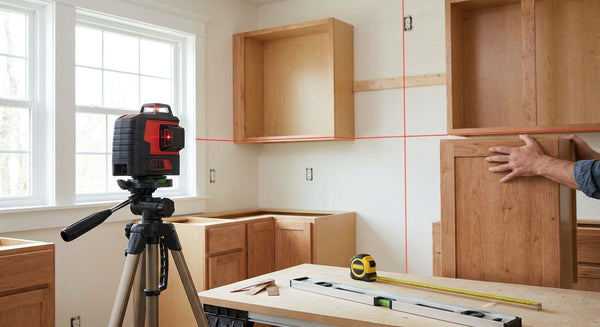

How to use a cross line laser for cabinet installation
- Find the highest point on the floor along the base cabinet run using a straightedge or the laser's own line held at floor height, and set your reference from there — packing up is easier than trimming a carcass down.
- Mark the base cabinet height line. Standard finished base cabinet height in the UK runs to roughly 870mm including the plinth and worktop, so measure down from that figure to find where the carcass top sits, then set the laser's horizontal line to that mark.
- Position the laser central to the run, ideally on a tripod at worktop height, so the beam hits both end walls without the line thinning out at distance.
- Let it self-level, then check it hasn't locked out — most cross line lasers flash or beep if the unit is tilted beyond their working range, and a locked-out laser gives a line that looks level but isn't.
- Transfer the horizontal line to a batten fixed along the wall, and hang or rest each base carcass on that batten rather than eyeballing off the floor.
- Switch to the vertical line for wall cabinets. Project it up from a fixed point on the base run so wall units sit plumb above the base line, not just level with each other.
- Set the wall cabinet height off the worktop plane, not the actual worktop surface — a typical gap is 450mm, but confirm it against the appliance heights on that job before drilling.
- Recheck the line at both ends of the run after fixing the first and last cabinet, because vibration from drilling can shift a laser resting on an unstable surface.
Setting the base cabinet line
Base units are the forgiving half of the job — floors are rarely level, so you're packing to a laser line anyway rather than trusting the slab. Run the horizontal beam along the full wall, mark it at 500mm intervals with a pencil, and pack each carcass foot to that line before screwing carcasses together. A Grettz G2D Mini Cross Line Laser handles this on kitchens up to roughly 4m across a single wall, and its green beam stays visible under normal site lighting without a laser detector.
Setting the wall cabinet line
Wall units are less forgiving because there's nothing below them to pack. Project the horizontal line at the underside height for the row, then use the vertical line dropped from a base cabinet corner to keep the wall run plumb above it. On longer galley kitchens or open-plan runs past 4-5m, a Grettz G4D Multi-Line Green Beam Laser Level throws a brighter, longer line than a compact mini laser, which matters once you're reading it across a full kitchen in daylight from a window.
Why cross line laser accuracy varies on site
- Distance from the wall — beam width widens the further the laser sits from the surface, so a line read at 6m is thicker and less precise than one read at 2m.
- Ambient light — green beams read better than red in daylight kitchens with south-facing windows, but red beams are still fine in artificial light or on darker walls.
- Surface texture — skimmed plaster gives a crisp line; textured tile backer or exposed brick scatters it, so mark off a straightedge held against the wall instead of the wall itself.
- Mounting stability — a laser on a stepladder or paint tin drifts if knocked, which is why a tripod or wall bracket earns its keep on anything over 3m.
- Self-levelling lock-out — every self-levelling laser has a working range beyond which it stops correcting and either flashes or gives a false level line, so start it close to level by eye.
- Battery state — a laser running low on charge on some units dims the beam before it cuts out, which is easy to miss under bright site lighting.
Do you need a green or red beam laser for kitchen fitting?
Green beam is the better call for most kitchen fitting because it's roughly four times more visible to the eye than red at the same power, which matters in bright rooms with large windows. Red beam units still work fine in utility rooms, garages, or any space without strong natural light, and they tend to run longer on a charge.
Can you use a cross line laser outdoors for cabinet work?
Outdoor cabinet-adjacent work — outdoor kitchens, garden bar units — needs a brighter beam or a laser detector, because standard cross line beams wash out in daylight past a few metres. Indoors, this isn't a concern; the laser's own line is visible without a detector across any normal kitchen.
How far should the laser sit from the cabinet run?
Central to the run is the practical answer, roughly equidistant from both end walls, so the beam covers the full length without one end reading a thicker or fainter line than the other. On runs longer than 5m, check the line at both extremes before fixing anything, since even a well-levelled laser reads slightly differently at 1m versus 5m.
For most domestic kitchens fitted through 2026, a mini cross line laser handles the base run and a multi-line laser earns its place on anything past a single wall — pick the second if the job runs corner-to-corner or into a second room.
“The last cabinet in the run is where fitters get judged, not the average of the whole kitchen.”
FAQ
How do you use a cross line laser for cabinet installation?
Set the laser central to the run at worktop height, let it self-level, then transfer the horizontal line to a batten for base units and the vertical line for plumb wall cabinet alignment. Recheck both lines after the first and last cabinet are fixed, since drilling vibration can shift an unstable mount.
What is the standard height for base kitchen cabinets?
870mm is the standard finished base cabinet height in the UK, including the carcass, plinth and worktop combined. Confirm against appliance heights before cutting or marking, since integrated appliances sometimes need a different reveal.
How high should wall cabinets be above the worktop?
450mm above the worktop plane is the typical gap for wall cabinets, projected from the laser's vertical line rather than measured off the worktop surface. Worktops are rarely perfectly level, so measuring off the laser datum keeps the wall run consistent even if the worktop isn't.
Is a green or red beam laser better for kitchen fitting?
Green beam is better for most kitchen fitting because it reads roughly four times more visible than red in daylight rooms with large windows. Red beam units are still a fine choice in utility rooms or garages without strong natural light.
Do you need a tripod for a cross line laser on cabinet work?
A tripod or wall bracket is worth it once the cabinet run passes 3m, because resting the laser on offcuts or a ladder risks drift if it's knocked mid-job. Shorter runs under 2-3m can usually get away with a stable flat surface.
Can a cross line laser be used for wall cabinets and base cabinets on the same job?
Yes, the horizontal line sets base cabinet height and the vertical line keeps wall cabinets plumb above the base run, both from the same fixed laser position. Switching between the two lines on one setup keeps everything referenced to a single datum instead of two separate measurements.
Why does my cross line laser line look level but the cabinets end up out of true?
The laser has likely locked out beyond its self-levelling range, which produces a line that looks level but isn't corrected — most units flash or beep when this happens. Start the laser as close to level by eye as possible before switching it on to avoid this.
One last thing
Check the laser's own accuracy before trusting it on a full kitchen run — a unit that's drifted even 1-2mm at 5m compounds across every cabinet joint in the room, and by 2026 most trade-grade cross line lasers on site have never had a drift check since they left the box. Grettz-Precision runs in-house calibration and servicing on its laser levels, which is worth using before a big fitting job rather than after the units are already screwed to the wall.
