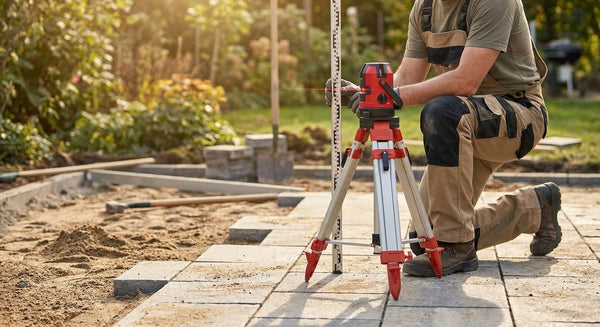

How to Level a Patio With a Laser Level (2026 Guide)
Aug 19, 2026
Getting a garden patio level with a laser level comes down to one job: set a single height reference, lock in a consistent fall for drainage, and check every slab against that one line as you go — not against the slab next to it.
- Levelling a patio with a laser level means setting one datum height and a fall, not eyeballing each slab.
- A Grettz G60 rotary laser kit sets the datum and fall for a whole patio in one setup. Buy.
- Aim for roughly a 1:80 fall away from the house, about 12mm drop per metre, to stop pooling.
- A digital spirit level like the Grettz GL120 confirms each slab sits on that fall once bedded.
- Recheck the full patio 24-48 hours after laying, once the bedding layer has taken a set.
Why this matters
A patio that's level in isolation but wrong relative to the house is worse than one that's slightly out everywhere. Water finds the low point, and if that low point is against the wall, you're dealing with damp problems by autumn 2026, not just wonky paving.
A spirit level checks that a single slab is flat. It tells you nothing about whether that slab sits at the right height relative to one 4 metres away. That's a levelling problem, not a flatness problem, and it's why a laser level for garden landscaping projects earns its keep over a 1200mm straightedge alone.
What you'll need
- A self-levelling laser — a rotary laser level for anything over about 4x4 metres, a cross-line laser for smaller patches
- Tripod and, ideally, a receiver if you're working outdoors in daylight
- A ranging pole or grade staff marked in millimetres
- Sub-base material (MOT Type 1 is standard for most UK domestic patios) and a compactor plate
- Bedding material — mortar bed or a screeded sand-and-cement mix depending on your slab type
- A digital spirit level for checking individual slabs once laid
- Pegs, string, and a builder's square for setting out edges
- Roughly a full day for a 20 square metre patio, longer if you're excavating from scratch
The steps
1. Set your damp-proof course datum first
Everything else measures off this one point, so get it right before anything else happens. Find the damp-proof course (DPC) on the house wall — UK Building Regulations require the finished patio surface to sit at least 150mm below it.
Set the laser up on the tripod roughly central to the site and self-level it. Take a reading against a ranging pole held at the DPC mark, note the number, then subtract 150mm — that's your target reading for the finished patio surface at that point.
Expected outcome: one number on the receiver or staff that every other height measurement on the job compares against.
Common mistake: measuring the DPC height with a tape from ground level instead of reading it off the laser. Any slope in the existing ground throws that measurement off by centimetres.
2. Mark your fall for drainage
A flat patio holds water. Building Regulations and most trade guidance call for a minimum fall of 1:80 away from the house — around 12mm of drop for every metre of run.
Work out your total drop across the patio's depth (a 4 metre patio needs roughly 50mm of total fall) and calculate the target laser reading at the far edge versus the house edge. Mark both figures on a peg or board you can refer back to all day.
Expected outcome: two known numbers — reading at the house, reading at the outer edge — with everything in between falling in a straight line on the beam.
Common mistake: falling the patio toward a fence or boundary instead of toward a soakaway or existing drainage point. Check where the water actually needs to go before you commit to a direction.
3. Excavate and check formation level
Dig out to your calculated depth: sub-base thickness plus bedding layer plus slab thickness, all measured down from your DPC datum. For most domestic jobs that's 100-150mm of sub-base, then 30-50mm of bedding, then the slab itself.
Use the laser and receiver to check formation level at several points across the dig, not just the corners. Soft or uneven ground under one section shows up here, before it becomes a rocking slab three weeks later.
Expected outcome: a formation level that reads consistently against the laser, following the same fall you set in step 2.
Common mistake: digging to a flat formation and trying to build the fall entirely into the bedding layer. It works for small jobs but wastes material and weakens the bed on larger patios.
4. Compact and screed the sub-base
Lay the sub-base in layers no thicker than 100mm and compact each layer with a plate compactor before adding the next. Check height against the laser after every pass — sub-base settles unevenly, especially over disturbed ground.
Once compacted, screed the surface using two screed rails set to your calculated heights, checking both rails against the laser reading before you drag the screed board across.
Expected outcome: a firm, flat sub-base that already carries the fall, so the bedding layer only needs to correct minor high and low points.
Common mistake: skipping compaction checks between layers. An uncompacted sub-base can drop 10-15mm under load within weeks, taking your carefully set fall with it.
5. Bed and set the slabs
Lay your mortar bed or bedding mix, then set each slab by tapping it down while checking the top surface against the laser beam or receiver reading for that position. Adjust the bed thickness under the slab, not the slab's angle, to hit the target height.
Check each slab against the laser as you go rather than in batches — a bedding mix that's started to set is much harder to correct.
Expected outcome: every slab's finished surface matches the calculated laser reading for its position on the fall line.
Common mistake: levelling slab-to-slab with a spirit level instead of slab-to-datum with the laser. Two slabs can look perfectly flat against each other and still both be 8mm off the overall fall.
6. Verify flatness within each slab
Once a slab is bedded to the right height, run a digital spirit level across its surface and diagonally corner to corner to confirm it hasn't rocked or tilted during bedding. This is a separate check from the laser reading — the laser confirms height, the spirit level confirms the slab itself is flat and stable.
Expected outcome: no rock when you press down on any corner, and a reading within 1-2mm on the digital display across the slab's length.
Common mistake: only pressing the centre of the slab to test for rocking. Corner and edge checks catch bedding voids that a centre-press misses entirely.
7. Recheck the whole patio after 24-48 hours
Mortar and screeded sand-cement beds shift slightly as they cure. Once the bedding has taken a set, run the laser across the full patio again, checking the same points you measured during laying.
Expected outcome: readings that match your original figures within a few millimetres, confirming the fall and datum have held.
Common mistake: pointing and grouting joints before this final check. If a slab has dropped, you'll be cutting out set grout to fix it.
Troubleshooting
Laser reading drifts across the site. Check the laser hasn't been knocked out of calibration — a drift check takes under a minute and should be part of your routine before any job over a few square metres.
Water pools near the house wall after rain. The fall is either too shallow or running the wrong direction. Re-measure with the laser at the house edge and the outer edge; if the difference is under the 1:80 minimum, the fix means lifting and re-bedding that section.
Ground looks solid but a slab still rocks weeks later. Sub-base compaction is the usual cause, not the bedding layer. A patio built over recently disturbed soil without proper compaction settles unevenly regardless of how carefully the slabs were levelled on day one — the same reason lawn contractors put real weight on preparing your garden ground before anything gets laid on top of it.
Receiver beeps constantly and won't lock on. Check the beam isn't being interrupted by fence posts, shrubs, or a raised bed at the edge of the site — repositioning the tripod usually solves it.
Tripod legs sink slightly during the day. Soft or freshly dug ground moves under tripod weight, especially after rain. Recheck your datum reading every hour or two on soft ground rather than trusting a single morning setup for a full day's work.
Fall looks right on the laser but the finished patio still feels flat underfoot. A 1:80 fall is subtle by design — it should be almost imperceptible to walk on while still shedding water. If it feels steep enough to notice, you've likely over-corrected and should recheck your maths from step 2.
Tools and resources
- A rotary laser with a receiver covers most residential patio sizes; for anything under about 3x3 metres a cross-line laser and tripod is enough
- A digital spirit level catches individual slab flatness a laser reading alone won't show you
- Keep pegs and a string line for marking edges before excavation starts — cheap insurance against a wonky boundary line
- Book a calibration check on any laser that's been dropped, stored in a cold van over winter, or hasn't been checked in the last 12 months
What to do next
Once the patio's level and cured, the same laser setup carries over to driveways, decking, and garden groundworks — the method for setting a datum and a fall doesn't change with the surface. For the fuller breakdown on choosing beam colour and receiver range for outdoor jobs specifically, the guide on laser level for driveways and patios covers the ground this article doesn't.
FAQ
How much fall should a garden patio have?
A garden patio needs a minimum fall of 1:80, roughly 12mm drop per metre, running away from the house. Anything flatter risks standing water after rain, and steeper falls start to feel uneven underfoot.
Can I level a patio without a laser level?
You can use string lines and a spirit level, but a laser level is faster and more accurate over distances beyond a couple of metres. String and spirit levels struggle to hold accuracy across a full patio width, especially with a calculated fall built in.
Is a rotary laser or a line laser better for patios?
A rotary laser level is better for full patios because it projects a 360-degree reference plane you can read from anywhere on site. Line lasers work fine for small patches under about 3x3 metres but lose visibility outdoors in daylight without a receiver.
How far below the damp-proof course should a patio sit?
UK guidance calls for the finished patio surface to sit at least 150mm below the damp-proof course on the house wall. That figure is your starting point for the datum reading you take with the laser before any digging begins.
How often should a laser level be calibrated?
Check calibration at least once a year, or immediately after any drop or knock. A quick on-site drift check before a patio job takes under a minute and catches most accuracy problems before they end up baked into the ground.
What sub-base depth does a patio need?
Most domestic patios need 100-150mm of compacted sub-base, plus a 30-50mm bedding layer on top. Heavier traffic areas or poor existing ground may need more depth to stay stable long term.
Why does my patio still hold water after levelling it?
The fall is either too shallow or running toward the wrong point rather than a drain or soakaway. Recheck the laser readings at the house edge and outer edge — if the difference is under 12mm per metre, the section needs lifting and re-bedding.
One last thing
Most patio levelling problems trace back to one habit: checking slabs against each other instead of against the datum. A patio can look perfectly flat slab-to-slab and still be 15-20mm out of fall end to end, and you won't know until the first heavy rain of 2026 sits in a puddle by the back door.
