Rotary Laser Level for Swimming Pool Installation (2026)
Aug 25, 2026
Setting out a swimming pool excavation with a bubble level or a cheap cross-line laser is how you end up with a coping run that's 15mm out at one corner and a deck that won't drain. A rotary laser level for swimming pool installation gives you one datum across the whole footprint, so every peg, profile board and drainage fall reads off the same line.
- The Grettz G60 Rotary Laser Level Kit at £374.99 is the safe buy for domestic pool groundworks in 2026.
- Dual-slope rotary lasers like the G80 matter when the coping needs a fall to a skimmer or drain, not just a flat plane.
- A 1200mm digital spirit level checks coping and paving edges the rotary can't reach on its own.
- Skip single-line green beam lasers for pool excavation depth checks — they're built for indoor plaster and stud work, not a 40mm-deep dig tolerance.
Why this matters
A pool build lives or dies on level. The excavation base, the shell or liner support, the coping stones and the surrounding paving all reference the same finished floor level (FFL), and any drift compounds by the time you're setting coping to a skimmer cut-out. Get the datum wrong at dig stage in 2026 and you're either backfilling with extra concrete or chasing a low corner with mortar bed six weeks later — both cost more than the tool.

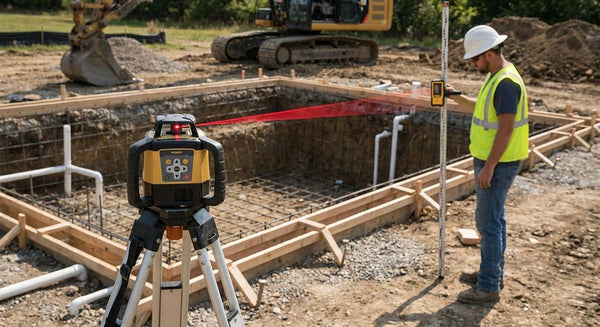

Rotary lasers solve this because the head spins a continuous 360-degree plane, picked up by a receiver anywhere around the pool perimeter. A line laser can't cover that distance outdoors in daylight. That's the whole reason trades reach for a rotary laser level for swimming pool installation instead of a standard cross-line kit.
Who this is for
This guide is for groundworkers, pool installers and landscapers setting out an in-ground pool — excavation depth checks, shell or panel alignment, coping level, and the paving or decking fall around the perimeter. If you're doing a single above-ground pool on an existing patio, a digital spirit level and a stringline will usually cover it; you don't need the rotary kit for that job.
What to look for in a rotary laser for pool installation
Self-levelling range across the whole footprint
A domestic pool footprint can run 8-10m on the long side plus a surrounding deck, so the laser needs to self-level accurately across that whole span, not just a few metres. If the compensator can't hold across the full plane, one end of your excavation reads true and the other doesn't — and you won't know until the concrete's poured.
Working range with a receiver
Outdoors, in daylight, you're reading the beam through a detector, not by eye. A rotary laser paired with a receiver needs enough working range to cover the pool perimeter plus the surrounding patio or deck area, because you'll be checking dig depth, shell height and coping level from multiple stations around the hole.
Dual-slope or grade capability
Most pool coping and the paving apron around it need a fall away from the water for drainage — not a dead-flat plane. A dual-slope rotary laser sets that fall directly from the head, so you're not hand-cutting a gradient off a level line afterwards. A single-grade or fixed-level rotary will get the pool floor right but leaves you guessing on the drainage fall.
Durability on a wet, muddy site
Pool groundworks means standing water, wet clay, and a laser that gets knocked, splashed and left out for the length of the dig. A tool built for site conditions rather than indoor use matters more here than on a kitchen fit-out.
Beam visibility outdoors
Red beam rotary lasers are fine when you're reading through a receiver, which is how you'll work most of a pool dig anyway. Green beam gives you a visual check by eye at close range — useful for a quick sanity check on the coping line before you rely on the detector reading.
Staff and tripod reach for excavation depth
Pool excavations typically go 1.2-1.8m below the surrounding ground level for the deep end. Your staff and tripod setup needs to reach down into the hole, or you're stretching a tape from the laser plane to the dig floor every time, which is slower and more error-prone.
Top picks for pool installation
The safe pick — Grettz G60 Rotary Laser Level Kit. At £374.99 it comes with tripod, staff and an LR1 receiver, which is the full setup you need for excavation depth checks and shell alignment on a standard domestic pool. Verdict: Buy — this is the kit most groundworkers reach for on a pool job and there's no reason to spend more unless the site has an unusual fall requirement.
The dual-slope pick — Grettz G80 Green Beam Dual Slope Rotary Laser Kit. Priced at £935.99, this is the one to reach for when the coping or the surrounding paving needs a built-in fall to a drain or skimmer rather than a flat plane. Verdict: Buy if drainage fall is part of the brief — Skip if you're only setting a flat excavation floor, because you're paying for grade capability you won't use.
The long-range pick — Grettz G70 Red Beam Dual-Grade Rotary Laser Kit. At £803.99, this sits between the G60 and G80 for larger pool footprints or combined pool-and-patio jobs where you're covering more ground from a single station. Verdict: Consider for bigger commercial or multi-pool sites; overkill for a single domestic install.
The setting-out companion — Grettz G4D Multi-Line Laser Kit. At £254.99, this handles the indoor and close-range work around the pool build — plant room walls, pump housing alignment, tiling lines — that a rotary laser isn't built for. Verdict: Buy as a second tool alongside the rotary, not instead of it.
The finishing check — Grettz GL120 1200mm Digital Spirit Level. At £169.99, this is what you use to check individual coping stones and paving edges once the rotary has set the overall datum. Verdict: Buy — a rotary plane and a digital spirit level do different jobs and neither replaces the other.
What to avoid
- Single-line cross line lasers for the dig itself. A green beam cross-line unit is built for indoor plaster, tiling and stud work at short range — it won't project a usable plane across an open excavation in daylight.
- A rotary kit with no receiver included. Without a detector you're reading the beam by eye at a distance where you can't see it accurately outdoors, which defeats the point of buying a rotary in the first place.
- A short staff that doesn't reach the dig floor. If your staff won't extend to the base of a 1.5m-plus excavation, you'll be improvising with a tape measure and losing the accuracy the laser gave you.
Verdict comparison
| Model | Price | Grade capability | Best use on a pool job | Verdict |
|---|---|---|---|---|
| Grettz G60 Rotary Laser Level Kit | £374.99 | Self-level | Excavation depth, shell alignment | Buy |
| Grettz G70 Dual-Grade Rotary Laser Kit | £803.99 | Dual-grade | Larger footprints, combined pool/patio | Consider |
| Grettz G80 Dual Slope Rotary Laser Kit | £935.99 | Dual-slope | Coping and paving drainage falls | Buy (if fall needed) |
| Grettz G4D Multi-Line Laser Kit | £254.99 | Multi-line, indoor/near-range | Plant room, pump housing, close-range setting out | Buy (secondary tool) |
| Grettz GL120 Digital Spirit Level | £169.99 | N/A | Coping stone and paving edge checks | Buy |
FAQ
What's the best rotary laser level for swimming pool installation?
The Grettz G60 Rotary Laser Level Kit at £374.99 covers most domestic pool groundworks, with a tripod, staff and receiver included. Bigger footprints or jobs needing a built-in drainage fall suit the G70 or G80 dual-slope models instead.
Do I need a dual-slope rotary laser for a pool?
Only if the coping or surrounding paving needs a built-in fall to a skimmer or drain. A standard self-level rotary handles a flat excavation floor and shell alignment fine on its own.
Is a rotary laser better than a line laser for pool excavation?
Yes, for the dig itself. A rotary laser projects a full 360-degree plane readable by a receiver across the whole pool perimeter, while a line laser is built for close-range indoor work and won't hold visibility outdoors at that distance.
How much does a rotary laser level for pool work cost in 2026?
A complete kit with tripod, staff and receiver runs from around £374.99 for a standard self-level unit to £935.99 for a dual-slope model, based on current UK pricing in 2026.
Do I need a receiver with a rotary laser for outdoor pool work?
Yes. Outdoor daylight washes out the beam at any real distance, so a receiver is how you read the plane accurately around the pool perimeter rather than trying to see it by eye.
What's the difference between the G60 and G80 rotary laser kits?
The G60 is a self-level red beam kit for £374.99 aimed at standard excavation and shell alignment. The G80 at £935.99 adds green beam visibility and dual-slope grading for jobs that need a built-in fall.
Can I use a digital spirit level instead of a rotary laser for pool coping?
A digital spirit level like the GL120 checks individual coping stones and short paving runs accurately, but it can't set one continuous datum across a whole pool perimeter the way a rotary laser can.
How deep can a rotary laser staff reach for pool excavation checks?
Staff length varies by kit, so check the reach against your dig depth before buying — most domestic pool excavations run 1.2-1.8m at the deep end, and the staff needs to extend into that without extension pieces.
One last thing
The detail that catches people out isn't the rotary laser itself — it's forgetting to check the drainage fall before the coping goes down. A perfectly level pool floor with a flat coping run around it means standing water on the deck after every rainfall in 2026's wetter months, and by then the fall has to be cut into finished paving rather than set at dig stage.
