Laser Level for Insulation Installation: 2026 Guide
Sep 04, 2026
Insulation and loft board installers need a laser level that throws a datum line across an entire loft run in near-dark conditions, not a laser built for bright outdoor groundwork. Getting that datum wrong means boarding that rocks on high joists, insulation compressed flat under low ones, and a callback once the client notices a dip in the floor.
- A laser level for insulation installation needs a bright, indoor-visible beam, not outdoor range — green beam wins in dark lofts.
- Set one joist-top datum line across the whole loft before boarding; boarding to individual joists causes dips.
- Grettz G4D green beam multi-line laser kit projects a cross-loft line; a 1200mm digital spirit level confirms individual joist level.
- 270mm is the widely published recommended loft insulation depth in the UK — check it against your datum, not by eye.
- Recheck the laser's self-level indicator after every tripod move; a knocked leg in a cramped loft throws the line off without warning.
Why a laser level matters for insulation and loft board installers
A loft is one of the worst environments for eyeballing level. There's no natural light, joist heights vary by several millimetres along a single run, and insulation hides the surface you're actually boarding onto. A green laser level for loft conversions solves the visibility problem specifically: the human eye is more sensitive to light in the green wavelength range than red, so a green beam laser level reads clearly against dark timber and mineral wool where a red beam washes out past a couple of metres.
The accuracy problem is separate. A string line only tells you two points are level with each other — it says nothing about the joist in the middle of the run that's 8mm proud. A single laser line, set once and left running, gives every joist in the loft the same reference point at the same time. That's the difference between boarding that sits flush in 2026 and boarding that needs re-doing in 2027.
Set your datum before you touch a single board
Mark a joist-top reference the manual way first
Before any laser goes up, most fitters still start with a straightedge and a spirit level across two or three joists to get a feel for how uneven the run actually is. It's slow, but it tells you what you're dealing with:
- Lay a straightedge across three adjacent joists near the loft hatch
- Check for daylight or gaps under the straightedge with a torch
- Note any joist that reads more than 5mm out from its neighbours
- Repeat at the far end of the loft, not just near the hatch
- Write the low and high points on a joist with a pencil, not memory
Check insulation depth against a fixed point, not by eye
Insulation depth varies more than people expect, especially where old loose-fill sits under newer roll or batt insulation. Checking it against a single fixed reference stops you boarding over a thin patch that will lose heat:
- Push a tape measure vertically down to the joist at 4-5 points along the run
- Compare each reading against the manufacturer's recommended depth for the insulation type fitted
- Flag any point reading under 200mm for topping up before boarding
- Photograph depth readings before boards go down — you can't check it after
In the UK, 270mm of mineral wool loft insulation is the widely published recommended depth for a well-insulated loft. If your manual checks are coming back under that across most of the run, that's a conversation with the client before boards go anywhere near it.

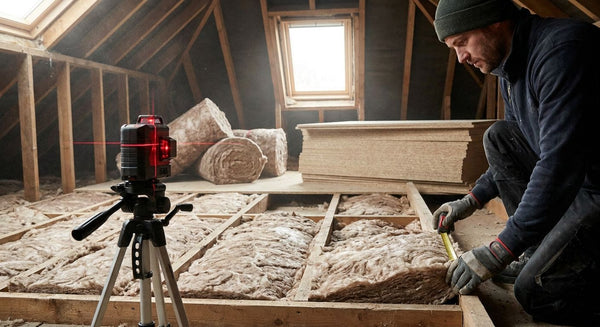

Switch to a laser line for a single datum across the whole loft
Manual checks work joist by joist. A cross line laser gives every joist in the loft the same reference at once, which is where the job speeds up. The Grettz G4D green beam multi-line laser kit ships with a tripod and pole, so the line can sit at a fixed working height above the joist tops for the length of the loft, not just near the hatch.
- Set the laser on its tripod at a height clear of insulation and cabling
- Let it self-level before marking anything — check the indicator, don't assume
- Project the horizontal line across the full width of the loft
- Mark the line's intersection with each joist using a pencil, not a marker pen that bleeds
- Leave the laser running while you work rather than marking once and switching it off
A cross line laser like the G4D throws four lines at once, so you can use one for the horizontal datum and a second for squaring board joins to the ridge without resetting the unit.
Confirm individual joist level with a digital reading, not a bubble
A laser datum tells you where level should be. A digital spirit level tells you exactly how far off an individual joist is from that line, in millimetres, not a guess based on where a bubble sits.
- Rest the level directly on the joist top, never on the insulation surface
- Read the digital display rather than estimating from a bubble position
- Shim any joist reading more than 3mm below the laser datum before boarding
- Recheck after shimming, not just before
The 1200mm digital spirit level covers a full joist bay in one reading, which matters when standard 400mm centres mean a lot of individual checks across a large loft.
Mark batten lines for raised loft boarding kits
Most modern loft boarding goes down on raised legs above the insulation rather than direct to the joist, which means a second set of reference lines for the batten or leg positions.
- Project a parallel line at leg height using the same laser, adjusted up from the joist datum
- Mark leg positions at the spacing specified for the boarding system in use
- Check leg height consistency at both ends of long runs, not just the middle
- Confirm the insulation depth still clears once legs and battens are in place
Square boarding runs to the roof structure
Boards that aren't square to the ridge create a stepped edge that's obvious once the loft is lit and in use.
- Use a second laser line perpendicular to the first to check board edges
- Measure from the ridge at both ends of a board run, not just one
- Adjust cuts before fixing, not after the board is screwed down
Recheck the datum at the far end of long lofts
A line that reads true at 3m can drift over a 12m run if the tripod's been nudged, or if the unit wasn't fully self-levelled when you started.
- Walk to the far end and re-check the line against a known joist height
- Compare against your original manual straightedge check from step one
- Reset the tripod if the reading has moved more than a few millimetres
“If the spirit level is resting on the insulation, the reading is wrong before you start.”
Comparing laser and level options for this job
| Option | Best for | Key limitation |
|---|---|---|
| Grettz G4D green beam multi-line laser kit | Full loft runs needing a datum across 8-12m | Needs a stable tripod position, not ideal in very tight roof spaces |
| Grettz G2D mini cross line laser | Small lofts, single bays, tight hatches | Shorter working range than a full multi-line kit |
| Grettz 1200mm digital spirit level | Confirming individual joist level against a datum | Doesn't project a line across the whole loft on its own |
| String line and straightedge | Quick spot-checks on two or three joists | No cross-loft accuracy, misses mid-run dips entirely |
A laser level for insulation installation work should be the multi-line kit for anything past a small hatch job; the mini cross line laser earns its place on tighter conversions where a tripod barely fits.
Common mistakes insulation and loft board installers make
- Resting a spirit level on insulation instead of the joist — the reading includes the compression of the material under the level, not the actual joist height.
- Checking level only near the hatch — the far end of a long loft run is where dips actually show up once boards go down.
- Boarding straight over insulation without a depth check — compresses the fill and reduces its thermal performance, which defeats the point of the job.
- Not confirming the laser has fully self-levelled after moving the tripod — a line thrown from an un-levelled unit looks fine at 2m and is out by centimetres at 10m.
- Assuming all loft legs are the same height out of the box — small manufacturing variance across a batch adds up over a long batten run.
FAQ
What's the best laser level for loft insulation installation?
A green beam multi-line laser like the Grettz G4D is the best laser level for loft insulation installation because the green beam stays visible in dark, unlit loft spaces across a full room-length run. A red beam works at short range but loses visibility past a few metres in most lofts.
Do I need a green beam laser for loft board fitting?
Green beam isn't mandatory but it's strongly preferred for loft board fitting because the human eye reads green light more clearly than red at the same output. In a dark loft with no natural light, that difference in visibility saves time marking joist lines.
How do you check loft joists are level before boarding?
Set a laser line across the joist tops as a fixed datum, then check each joist against it with a digital spirit level rather than a bubble level. Shim any joist reading more than a few millimetres below the datum before boards go down.
Can I use a normal spirit level instead of a laser for loft boarding?
A standard spirit level only compares two points at a time, so it misses dips in the middle of a long joist run that a single laser datum catches instantly. It works for very small lofts or single-bay jobs but doesn't scale to a full loft run.
How much loft insulation depth is recommended in the UK?
270mm of mineral wool is the widely published recommended loft insulation depth in the UK for 2026. Check depth at several points along the run against your laser datum before boarding over it.
Is a cross line laser accurate enough for loft board layout?
Yes, a cross line laser is accurate enough for loft board layout when it's fully self-levelled and set on a stable tripod. The line itself is only as reliable as the tripod position, so recheck it after any knock or move.
How do you stop a laser level losing its datum in a loft?
Set the tripod on a firm, level base clear of loose insulation and cabling, and check the self-level indicator every time the unit is moved. A soft or shifting base under one tripod leg is the most common cause of datum drift on long runs.
What's the difference between a rotary laser and a cross line laser for loft work?
A rotary laser projects a full 360-degree plane and suits large open areas like groundworks, while a cross line laser projects fixed horizontal and vertical lines better suited to the confined dimensions of a loft. Most loft insulation and boarding jobs only need a cross line unit.
One last thing
The most overlooked step isn't the laser purchase, it's the recheck. A tripod leg sinking half a millimetre into loose insulation over the course of an hour's work is enough to throw a datum off by several millimetres at the far end of a 10m loft — and it happens silently, with no warning on the display. Build in a five-second glance at the self-level indicator every time you move position in 2026, not just when you first set up.
