Laser Level for Floor Screeding: 2026 Buyer's Guide
Sep 04, 2026

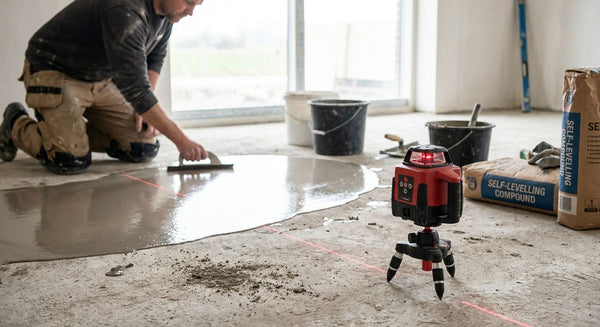

Floor screeders and self-levelling compound installers need one fixed laser reference that holds across a whole slab, because a screed rail set 2mm out at one end of a 40 square metre room turns into a visible lip at the far wall once the compound has gone off. That's a different problem to setting out a foundation or checking a stud wall for plumb — screed work lives or dies on flatness across a continuous pour, and a laser level for floor screeding gets a crew to that flatness faster than tape-measuring a datum room to room.
- A rotary laser level for floor screeding holds one datum across a whole slab; the Grettz G60 kit covers large rooms.
- Line lasers such as the Grettz G4D suit single rooms and self-levelling compound pours under 10 metres across.
- SR1 flatness (3mm under a 2m straightedge, BS 8204-1) needs a laser check, not an eyeballed rail.
- Digital spirit levels like the Grettz GL120 confirm flatness once compound has cured, not before.
- Calibrate before a big pour in 2026 — drift shows up as a lip at the doorway, not on the laser display.
Why laser level accuracy matters for floor screeders
Self-levelling compound flows to its own level. That sounds like an advantage until you remember it also pools in every low spot on the subfloor and leaves a thin skim where the base was already high — the compound doesn't fix an uneven substrate, it just shows you where the substrate was uneven all along, usually after it's cured and too late to fix cheaply.
BS 8204-1 sets the SR1 flatness class at 3mm under a 2m straightedge, the standard most flooring contractors are working to before resilient or hard flooring goes down on top. Hitting that tolerance across a whole room with a tape measure and a spirit level means chaining small errors room to room, and every chain adds error. A laser level for floor screeding such as the Grettz G60 rotary laser level kit removes the chaining, because every rail and every depth check reads off the same fixed height instead of the last one measured.
How to set up a laser level for floor screeding and self-levelling compound
The sequence below runs from datum through to final flatness check, in the order a screeding crew actually works a room in 2026 — not the order a laser manual explains the buttons.
1. Set your datum before the first bag goes in
Mark the finished floor level off a fixed reference point — a doorway threshold, a damp-proof membrane line, or a site benchmark — before any rail goes down. Do it by hand with a water level or a long spirit level chained wall to wall, or set a rotary laser above head height and read the beam off a receiver at each rail position.
- Mark the finished floor level on a fixed point before rails go down
- Chain the height around the room with a string and line level if you're working without a laser
- Set the laser above stacked bags and mixing kit so the beam stays clear
- Log the datum reading so a second fitter can pick the job up mid-pour
- Re-check the datum against the original mark once an hour on long pours
2. Rail the room off one height reference
Every screed rail in the room should read off the same laser datum, not a tape measure run off the nearest wall. Set rails against a receiver reading, not against a rail that looks level with the one laid before it.
- Read both ends of every rail length, not just the end nearest the laser
- Use a line laser for rooms under 10 metres across — faster to set and reset than swinging a rotary head
- Note the laser's offset above rail height so every rail in the room is set the same way
- Check corner rails last — they're the ones most often set by eye instead of the beam
3. Check pour depth as you go, not after
Self-levelling compound hides substrate problems until it's cured. Check depth at the low points of the subfloor before the pour, not just at the datum marks along the rails.
- Take a depth reading at the lowest visible point of the subfloor before mixing starts
- Check depth again at the midpoint of a large pour, not just at the edges
- Keep a tape or depth gauge at every rail, not just the first one laid
- Flag any subfloor dip over 5mm before compound goes down — it needs packing, not just more compound
4. Verify flatness once the compound has gone off
The SR1 check happens after cure, and it's the step most often skipped because the floor looks flat to the eye.
- Run a 2m straightedge across doorways and thresholds first — that's where lips show up first
- Use a digital spirit level such as the Grettz GL120 1200mm digital spirit level to log a numeric reading instead of a bubble check
- Re-check at 24 and 72 hours — compound keeps curing and can telegraph small dips as it does
- Flag anything over the 3mm SR1 limit before flooring goes down on top of it
For a broader comparison of digital versus bubble levels on flooring jobs, see digital spirit level for flooring work.
5. Match beam type to the room and light levels
- Green beam lasers such as the Grettz G4D and G2D read easier in daylight and under site lighting than red beam units
- Red beam rotary lasers cover bigger areas and longer ranges on multi-room jobs
- A receiver is close to mandatory outdoors or in a glazed extension, where beam contrast against daylight drops fast
- Indoor-only single rooms rarely need a full rotary kit — a line laser sets up in under a minute
6. Mount the laser so it survives a screeding job
- Set the tripod on solid ground, never on loose subfloor or stacked bags of compound
- Keep the unit clear of the splash zone once mixing starts
- Use a wall mount or pole where floor space around the pour is tight
- Wipe the lens before use — screed dust settles fast and throws the beam off
7. Calibrate before a big pour
A laser reading a few millimetres out doesn't show up on the display — it shows up as a lip at the doorway once the compound's cured. Run a quick drift check against a fixed point at four sides of the room before a big pour, and book the unit in for Grettz's Service 72 calibration if the readings don't match.
Which laser level fits your screeding jobs
| Option | Best for | Key limitation | Verdict |
|---|---|---|---|
| Grettz G60 rotary laser level kit | Large slabs, whole-floor screed jobs, multi-room pours | Needs a receiver and more setup time than a line laser | Buy for multi-room sites |
| Grettz G4D green beam multi-line laser kit | Single rooms and self-levelling compound pours under 10 metres | Beam visibility drops outdoors in bright light | Buy for single-room work |
| Grettz G2D mini cross-line laser | Small rooms, quick rail checks, tight budgets | Shorter working range than a full rotary kit | Hold for small jobs only |
| Grettz GL120 digital spirit level | Checking flatness and thresholds after compound cures | Doesn't set a room-wide datum on its own | Buy as a second tool |
| Tape measure and string line | Small patch repairs only | Error compounds fast across a room, no fixed datum | Skip for anything over one room |
Common mistakes floor screeders make with laser levels
- Tape-measuring the datum room to room instead of reading one laser reference — small errors compound into a visible lip by the far wall of a large room.
- Skipping the depth check before compound goes down, assuming self-levelling compound will even out a rough subfloor on its own rather than pooling in the low spots.
- Running a red beam laser in a bright, glazed extension, where the beam disappears against daylight and the rail ends up set by eye instead of by reading.
- Leaving the flatness check until flooring's already being fitted — a 4mm lip is far cheaper to catch and fix before the skirting goes on than after.
- Never checking laser accuracy before a big pour — a few millimetres of drift on the unit becomes a visible step at every doorway in the house.
“A screed rail set 2mm out at one end of a room is a visible lip at the far wall by the time self-levelling compound has gone off.”
FAQ
What's the best laser level for floor screeding?
A rotary laser level such as the Grettz G60 is the best laser level for floor screeding on large or multi-room slabs, because it holds one datum across the whole floor. For single rooms under 10 metres, a line laser like the Grettz G4D sets up faster.
Is a rotary laser level better than a line laser for self-levelling compound?
A rotary laser covers a bigger area and suits whole-slab jobs with multiple rooms, while a line laser is quicker to set up in a single room. Pick based on room count and floor area, not on price alone.
How much does a laser level for floor screeding cost?
Cost depends on beam type, range and whether a receiver and tripod are included, so check current listings on the Grettz site rather than relying on a fixed figure. Rotary kits with a receiver and staff typically cost more than a basic line laser.
How accurate does a laser level need to be for floor screeding?
Most flooring contractors work to the SR1 flatness class from BS 8204-1, which allows 3mm under a 2m straightedge. A laser that's drifted a few millimetres will put the whole room outside that tolerance without showing anything wrong on its own display.
Can I use a laser level indoors for self-levelling compound?
Yes — green beam lasers are easier to read indoors than red beam units under normal site lighting. A line laser is usually enough for a single indoor room; larger multi-room jobs suit a rotary kit.
How often should I calibrate a laser level used for screeding?
Check drift before any big pour with a quick reading against a fixed point at four sides of the room. If the readings don't match, book the unit in for a calibration service rather than trusting a display reading that hasn't been checked recently.
What's the SR1 tolerance for floor flatness?
SR1 under BS 8204-1 allows 3mm of deviation under a 2m straightedge, the tightest of the three surface regularity classes. It's the tolerance most resilient and hard flooring installers expect before they'll lay on top of a screed.
Do I need a laser receiver for indoor screeding work?
A receiver isn't essential for a well-lit indoor room with a green beam laser, but it becomes close to mandatory outdoors or in a glazed extension where daylight washes out the beam. Rotary kits are usually sold with a receiver included for this reason.
One last thing
Most flatness failures on a self-levelling compound job aren't the compound's fault — they trace back to a datum reading taken off a rail that shifted overnight while bags were stacked against it. Recheck the datum the morning of the pour, not just when the rails first go down, and keep the laser calibrated to Grettz's Service 72 standard rather than trusting a display that hasn't been checked since last year's jobs.
