How to Use a Surveyors Tape Measure (2026 UK Guide)
Aug 19, 2026
Pulling a tape measure sounds simple until the numbers on site don't match the numbers on the drawing — and on a groundworks job in 2026, a 12mm error at 30 metres can shift a foundation corner enough to fail building control. This guide covers how to use a surveyors tape measure properly: zeroing, tensioning, reading, and the mistakes that cost tradespeople a re-dig.
- Learning how to use a surveyors tape measure starts with zeroing at the datum peg, not the case edge.
- A steel-core 50m tape measure holds tension in wind better than fibreglass reels in 2026 — Buy for groundworks.
- Two readers should agree within 3mm over 30m; disagreement past that means re-pull, not re-record.
- Store the tape dry and re-reel after every wet pour or it kinks within a season.
Why this matters
A tape measure looks like the least technical tool on a site van, right after a lump hammer. That's exactly why errors on it go unchecked — nobody double-checks a tape the way they'd double-check a laser.
Most setting-out disputes in 2026 come down to two things: a tape zeroed from the wrong point, or two people pulling it with different tension. Both are free to fix. Neither needs new kit.
If you're setting datum points, transferring measurements from drawings, or checking a rotary laser's grid against a physical span, the tape is doing the ground-truth work. Get it wrong and every laser reading built on top of it is wrong too.
What you'll need
- A steel-core surveyors tape, minimum 30m — a 50m steel surveyors tape measure covers most plot-sized groundworks jobs without a re-pull
- Two ranging pins or datum pegs to anchor each end
- A second person for spans over 10m — one-person readings drift
- A notepad or phone to record readings immediately, not from memory
- Pegs or paint marker to mark the zero point clearly on site
Fibreglass tapes stretch under load and shrink in cold weather — fine for a quick DIY measurement, not fine for setting a foundation corner. Steel-core tape holds its length within a fraction of a millimetre per metre, which is the whole point of using a surveyors tape instead of a builder's tape in the first place.
The steps
1. Inspect the tape before you pull it
Check the blade for kinks, especially near the case where most damage happens. A kinked steel tape reads short at that point every single time, and the kink doesn't announce itself on the blade markings. Run the tape out flat on a clean surface first if it's been sitting since the last job. Expected outcome: a smooth blade with no creases and a legible zero mark. Common mistake: pulling a damaged tape straight off the van without checking it, then blaming the laser when the setting-out doesn't match.
2. Zero at the correct datum

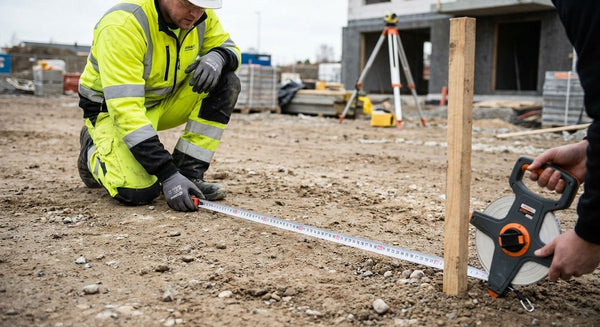

Anchor the tape's actual zero point — usually the ring or hook, not the edge of the case — directly over the datum peg or corner mark. Case-edge zeroing is the single most common tape error on site because the case body adds 5-10mm of offset that people forget to account for. Hold the hook against the peg with a pin, not your thumb, if the span is long enough for the tape to pull sideways. Expected outcome: zero sits exactly on the mark, confirmed by eye before anyone reads the far end.
3. Apply consistent tension
Pull the tape firm and straight, then hold that same tension every time you take a reading on that job. Tension inconsistency is what makes two readings of the same span disagree by 4-5mm — the tape itself hasn't changed, the pull has. Agree the tension method with whoever's holding the other end before you start, not mid-measurement. Common mistake: one person pulling hard, the other holding slack — the reading splits the difference and nobody notices.
4. Read at eye level to avoid parallax
Crouch or raise the tape so your eye is level with the marking, not reading down at an angle. Reading from standing height across a low tape adds a visual offset of 2-3mm that compounds over multiple measurements. Call the reading out loud rather than reading it silently and writing it later — this catches transposition errors (31 read as 13) before they get written down. Expected outcome: a clean, agreed number both ends can confirm.
5. Cross-check with a second reader
Have the person at the far end call their reading independently before comparing. Two independent calls that land within 3mm over a 30m span confirm the tape is being pulled correctly; anything wider means re-pull, don't average. This single habit catches more setting-out errors in 2026 groundworks than any other step in this list. Common mistake: one person reads, the other just agrees to move on.
6. Support long spans against sag
Over roughly 20-25m, an unsupported steel tape sags in the middle under its own weight, and that sag reads long. Use a peg or a third person to lift the mid-span clear of the ground on long pulls. On sloped ground, keep the tape level rather than following the slope, or account for the slope separately using a laser level check. Expected outcome: a straight-line reading, not a ground-hugging one.
7. Reel in clean and dry
Wipe the blade before reeling it back in, especially after a wet pour or muddy groundworks. Grit trapped in the case housing scores the blade over time and eventually throws the printed graduations out slightly. Never force a wet tape back into the case under tension — let it dry loose first. Common mistake: reeling in fast at the end of a long day, which is exactly when kinks happen.
Troubleshooting
Readings disagree between two people by more than 3mm over 30m — re-check zero point and tension method before re-pulling; usually one person is zeroing from the case, not the hook.
Tape reads short compared to the drawing measurement — inspect for a kink near the case, the most common hidden fault on a working site tape.
Blade won't stay flat, keeps curling — the tape has likely been stored wet or reeled in too fast; let it dry fully extended before the next job.
Zero point keeps slipping off the peg mid-measurement — anchor with a ranging pin through the hook eyelet instead of holding by hand, particularly on windy days.
Long-span readings vary each time you repeat them — check for mid-span sag; support the tape at the midpoint on anything over 20m.
Tape snaps back and traps a finger or kinks the blade — always retract by guiding the blade in with your hand on the case, never let a long pull run free.
Tools and resources
A steel surveyors tape does the linear measurement, but most groundworks setting-out also needs a datum height reference and a straight edge to work off. For height datums, pair the tape with a rotary laser — see the guide on surveyors tape measures for groundworks for how the two tools work together on a foundation set-out.
For marking straight runs between pegs once your tape measurements are confirmed, an 8-braid stringline holds a truer line across a plot than twisted line, particularly on longer runs where sag matters as much as it does with the tape itself.
Buy the 50m if you're regularly setting out plots or foundation corners in 2026 — the extra length avoids re-anchoring mid-span. Consider the 30m for smaller extensions, garden work, or where storage space on the van is tight.
“If two readers disagree by more than 3mm over 30 metres, re-pull the tape — don't split the difference.”
What to do next
Once your ground measurements are confirmed, the next job is usually setting height datums with a rotary laser. That's a separate skill with its own common errors — worth reading before you set your first FFL datum of the season.
FAQ
How do you use a surveyors tape measure correctly?
Zero the tape at the actual hook or ring, not the case edge, anchor it firmly over the datum point, and apply the same tension every time you read it. Two people should read independently and agree within 3mm over 30m before recording the figure.
What's the difference between a surveyors tape and a builder's tape measure?
A surveyors tape has a steel or steel-coated blade that resists stretch and temperature change over long spans, typically 30m to 50m. A builder's tape is shorter, usually 5m to 8m, and fine for internal work but not accurate enough for setting out a plot.
Why does my tape measure give different readings each time?
Inconsistent tension is the most common cause — pulling firm one time and loose the next changes the reading by several millimetres over a long span. Mid-span sag on unsupported pulls over 20m is the second most common cause.
How much tension should you apply to a surveyors tape?
Apply a firm, steady pull and keep it identical for every reading on the same job rather than targeting an exact force figure. Consistency between readings matters more than the specific amount of tension used.
Can you use a tape measure and a laser level together for setting out?
Yes — the tape handles horizontal distances between corners and datum pegs, while a rotary or line laser handles the height datum across the same points. Most foundation setting-out in 2026 uses both tools on the same job.
How long should a surveyors tape measure be for foundation work?
A 30m tape covers most domestic extensions, while a 50m tape avoids re-anchoring mid-span on larger plots or full new-build footprints. Buying longer than you need rarely causes problems; buying short means constant repositioning.
Why does my steel tape measure keep kinking?
Kinks usually happen from fast reeling-in under tension or storing the blade wet after a muddy pour. Wipe the blade dry and reel it in slowly, guiding it with your hand rather than letting it snap back.
Do surveyors tape measures need calibration like laser levels?
A steel tape doesn't drift the way a laser's internal sensor can, but physical damage like kinks or stretch from overloading will throw readings off. Inspect the blade regularly rather than relying on a calibration schedule.
One last thing
The offset between the case edge and the actual zero hook is usually 5-10mm depending on the tape — measure it once on your own tape and write it on the case, because that's the single error that shows up most often on site in 2026, and it's invisible until someone checks for it.
