Laser Level for Solar Panel Installation (2026 Guide)
Aug 29, 2026
Setting out a solar array on a roof with no square edges and no easy reference point is where most installers waste time. A laser level solves that by giving you one fixed, dead-level plane to work off instead of eyeballing rafters and hoping the rows line up.
Use a rotary laser to set the datum height for the mounting rail run across the roof, a green beam line laser to mark rafter or batten positions along that datum, and a digital spirit level to check each rail is true before you drill. Run a quick drift check on the unit before you climb up, because a laser that's out by even a fraction over a 6-8 metre rail run throws every panel in the row out of true.
Why this matters
An out-of-level rail run doesn't just look wrong from the ground. Panels sitting proud at one end catch wind differently, water pools against low-side frames instead of running off, and inconsistent tilt across a string can knock output efficiency because the modules aren't all facing the sun at the same angle.
On a pitched roof you're also fighting glare, shadow, and a working surface that isn't flat to begin with. A laser level takes those variables out of the equation by giving you a fixed plane you can check against at any point on the roof, not a straight edge you have to re-check every metre.
- Use a rotary laser to set the rail datum and a line laser to mark rafter positions for solar panel installation in 2026.
- The Grettz G60 rotary laser kit covers full roof-length datum work at £374.99 with tripod, staff and receiver included.
- Green beam lasers like the Grettz G4D stay visible in daylight where red beam units wash out on a bright roof.
- Check every rail with a digital spirit level before fixing — a laser sets the plane, the spirit level confirms the fix.
- Run a drift check before the job starts; a laser that's off by a fraction over a long rail run puts every panel out of true.

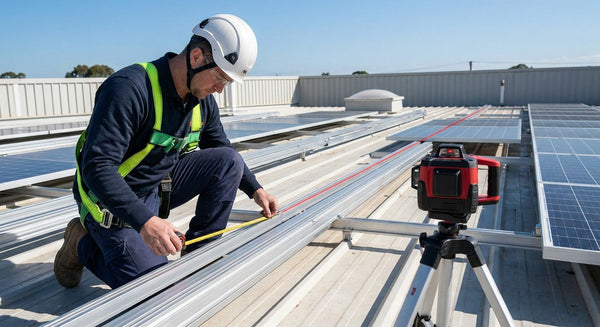

How to use a laser level for solar panel installation
The process is the same whether you're fitting an in-roof system or a rail-mounted array on tiles: set the datum, mark the fixings, check the level, then re-check before you seal.
- Set up the rotary laser at ground level or on the scaffold platform. Level it over a tripod using the Grettz G60 rotary laser level kit, which self-levels and gives a full 360-degree reference plane you can read from anywhere on the roof.
- Establish your datum height off the fascia or ridge line. Take a reading with a laser receiver where the beam is hard to see against a bright roof — this is the reference every rail measurement comes back to.
- Mark rafter or batten positions along the rail run. A green beam multi-line laser projects a visible horizontal reference across the roof surface, which is where a best rotary laser level for roofing setup earns its keep over a standard string line.
- Fix the mounting rails to the marked points. Check each rail against the laser line as you go rather than trusting the first two fixings to hold the whole run true.
- Confirm every rail with a digital spirit level before panels go on. A 1200mm digital level reads the angle at each fixing point and catches any rail that's crept out of tolerance during fixing.
- Check tilt and pitch consistency across the finished frame. Small variations between rows are normal on older roofs — the point is catching them before the panels are clipped in, not after.
Rotary laser vs line laser for this job
| Task | Best tool | Why |
|---|---|---|
| Setting the rail datum across a full roof | Rotary laser | 360-degree plane, readable from any point on a long run |
| Marking rafter or batten positions | Green beam line laser | Visible cross-line reference at close range, no receiver needed indoors or in shade |
| Checking individual rail level before fixing | Digital spirit level | Reads exact angle at the fixing point, not just level/not-level |
| Working in direct sun on a light-coloured roof | Green beam laser or receiver | Red beam lasers wash out in bright daylight; green is roughly four times more visible to the eye |
Verdict: for a rail-mounted solar array, a rotary laser sets the datum, a green beam line laser marks the fixings, and a digital spirit level catches the errors between the two. Skip any one of the three and you're back to eyeballing it.
Why laser level results vary on a solar install
A laser level's job is the same on every roof, but the conditions on site change what you need from it:
- Roof pitch — steeper roofs mean longer working distances between the laser and the reading point, which is where a rotary laser's 360-degree plane matters more than a fixed line laser.
- Roof colour and glare — light-coloured tiles or membranes wash out a red beam fast; a green beam or a laser receiver reads through that glare.
- Rafter spacing consistency — older roofs rarely have perfectly even rafter centres, so mark every fixing point off the laser reference rather than measuring off the last panel.
- Rail run length — the longer the row, the more a small setup error compounds by the far end; check the datum at both ends of a long run, not just the middle.
- Wind exposure during install — a self-levelling unit that's knocked slightly off plumb on a windy day should be re-checked before you trust a reading, not assumed steady.
- Access and working platform — scaffold, cherry picker or ladder work all change how practical a rotary laser's line-of-sight is versus a compact cross-line unit.
Related questions
Can you use a line laser instead of a rotary laser for solar panels?
A line laser works fine for marking short rafter runs or single-row jobs, but a rotary laser is the better tool for setting one consistent datum across a full roof in 2026. Line lasers project a fixed cross or set of lines at close range; a rotary unit spins a level plane you can read from any point on the roof without moving the tool.
Do you need a laser receiver for a rotary laser on a roof?
Yes, on a bright roof a laser receiver is close to essential because a spinning beam is hard to see with the naked eye in direct sun. The receiver clips onto a staff or pole and beeps or shows a readout when it's level with the beam, which is faster and more reliable than squinting at a red line.
How accurate does a laser level need to be for solar panel rails?
Accurate enough that every fixing point along a rail run reads the same on the laser and the same on a digital spirit level — any drift between the two means the tool needs checking before the job continues. Running a quick on-site drift check before you start, the same practice covered in Grettz's calibration guide, catches this before it costs you a re-fix.
FAQ
What laser level is best for solar panel installation?
A rotary laser for the rail datum paired with a green beam line laser for marking fixings is the combination most roofing and solar installers use in 2026. The rotary unit covers the full roof plane; the line laser handles close-range marking without needing a receiver in shaded areas.
Can I use a laser level indoors before fitting an in-roof solar system?
Yes, a cross-line laser works well for marking out rafter positions from inside the loft before an in-roof array goes on. A red beam unit is usually visible enough indoors without the extra cost of a green beam model.
Do solar installers need a rotary laser or is a line laser enough?
A line laser is enough for short single-row jobs, but a rotary laser is the practical choice for anything longer than a few metres because it holds one level plane across the whole roof. Most trade installers carry both.
How do you check a laser level is accurate before a solar job?
Run a quick on-site check by comparing a reading at one end of the roof against a reading at the other end — if they don't match, the unit needs recalibrating before use. This takes under a minute and avoids a full rail run being fixed out of true.
Is a green beam laser worth it for roof work?
Yes, green beam lasers are noticeably easier to see in daylight than red beam models, which matters on an open roof with no shade. Most professional roofing and solar kits sold in 2026 default to green beam for this reason.
What tripod height do you need for a rotary laser on a roof install?
The tripod needs to put the laser at a consistent working height above the datum line you're referencing, usually set up on the scaffold platform rather than the ground for roof-level work. A dedicated tripod and pole set keeps that height consistent across the whole job.
One last thing
Most re-fixes on solar rail runs aren't caused by a bad laser reading — they're caused by nobody checking the unit was still level after it got knocked or moved mid-job. Re-check the datum at both ends of the run before final fixing, not just once at the start; it costs two minutes and it's the difference between a straight row and a row that needs pulling apart.
