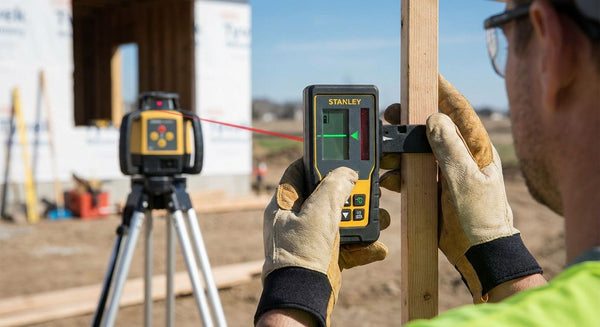

How to Use a Laser Detector With a Rotary Laser (2026)
Aug 21, 2026
Point a rotary laser at a wall and you get a spinning line you can just about see indoors. Take that same laser onto a groundworks site or up a scaffold in daylight and the beam disappears - which is exactly why a laser detector exists. This guide covers mounting, syncing, and reading a receiver against a rotary laser level, step by step, for UK site work in 2026.
- Mount the receiver flush to the grade rod's zero mark before switching on the rotary laser.
- Centre the receiver on the null point, not the edge of the beep window, for an accurate grade read.
- A Grettz G60 rotary laser kit ships with an LR1 receiver ready to pair out of the box - Buy for groundworks.
- Bright sun kills red-beam visibility fast; a green-beam rotary laser or the receiver's own reading solves it.
- Run the 60-second drift check before a big pour - a knocked laser throws grade off all day.
Why this matters
A rotary laser without a detector is only as good as what your eye can see, and your eye is unreliable past a few metres outdoors. The receiver reads the beam electronically and tells you, with a beep and a centre light, exactly where the plane sits on the rod - no squinting, no guessing on a bright afternoon.
Get the technique wrong and the error doesn't show up until the concrete's poured or the deck joists are fixed. Get it right and one rotary laser plus one receiver sets grade across an entire plot in the time it takes to walk it.
What you'll need
- A self-levelling rotary laser - a Grettz G60 rotary laser kit covers most groundworks and foundation jobs
- A compatible laser receiver, clamped to a telescopic grade rod or staff
- A tripod set on firm, undisturbed ground
- Spare batteries for both the laser and the receiver
- A permanent marker or grease pencil for marking the rod
- 15-20 minutes for setup and a full site check
For dual-slope work - drainage falls, sloped patios, ramps - a kit built for grade, not just level, saves you doing the maths by hand.
The steps
1. Mount the receiver on the grade rod
Clamp the receiver to the staff so its display faces you and its detection window sits flush against the rod's face. Align the receiver's zero index with a known mark on the rod before you power anything on - this is the reference point every reading comes from. Common mistake: clamping loosely so the receiver slips a few millimetres mid-job, which quietly shifts every reading that follows.
2. Set up and level the rotary laser
Plant the tripod on solid ground, mount the laser, and switch it on. Most units self-level within seconds and lock with a steady light or tone once the head stops hunting. Give it a moment on uneven or soft ground - if the pod keeps correcting, the tripod legs need re-seating, not the laser.
3. Choose rotation speed and beam mode
Slower rotation suits tight indoor spaces where you're reading close to the unit; faster rotation covers wide outdoor areas and holds up better against wind and dust. A green-beam rotary laser like the Grettz G80 reads more clearly in daylight than a standard red beam, which matters once you're working past 20-30 metres from the tripod.
4. Switch on the receiver and pick a read window
Most receivers offer a fine setting for precision work and a wide setting for scanning a rod quickly. Use wide to find the beam fast, then switch to fine once you're close to confirm the exact grade - skipping this step is the most common reason readings look close enough but aren't.
5. Slide the receiver until it centres
Move the receiver up and down the rod until it lands on the null point - a steady centre light and a single tone, not the rapid beep either side of it. That centre point, not the edge of the detection band, is your true elevation.
6. Read and mark the grade
Once centred, read the rod at the receiver's index mark and record it. If you're working to a grade below the laser's arbitrary plane - a drainage fall, a slab thickness allowance - dial in the offset on the receiver rather than doing the subtraction by hand every time. Mark the rod or the formwork directly so the next person on site doesn't have to re-measure.
7. Check multiple points before you commit
Move the receiver to at least three separate locations across the site and confirm the fall or level is consistent. A single reading tells you nothing about whether the rotation is true across the whole plane - three tells you the laser is trustworthy.
8. Power down and store correctly
Cap the receiver's sensor window, switch off both units, and pack them into their cases rather than a tool bag. A knocked receiver or a laser stored loose in a van is the single biggest cause of drift between jobs.
Troubleshooting
- No pickup outdoors in bright sun - shade the receiver window with your hand first; if that doesn't fix it, a green-beam rotary laser reads through glare far better than red.
- Receiver beeps constantly but never centres - the laser is likely out of its self-level range on sloped or soft ground. Re-seat the tripod on firmer footing and re-level.
- Readings drift between the three check points - the tripod legs weren't tightened fully, or the receiver clamp slipped on the rod. Re-zero against your reference mark and start again.
- Signal drops off at distance but works fine up close - check battery level on both units before blaming range; weak batteries shrink the working radius long before the display shows it.
- Laser keeps hunting and won't lock level - ground vibration, wind on a tall tripod, or a knocked unit. Run the 60-second drift check before trusting another reading.
Tools and resources
- A rotary laser and receiver pair - the Grettz G60 rotary laser kit is the straightforward starting point for most groundworks and foundation jobs.
- Grettz's own guide to calibrating a rotary laser level for the full drift-check procedure and what Service 72 calibration covers if a unit needs a proper check.
- A steel surveyors tape measure for cross-checking distances between setup points, since a receiver only confirms elevation, not position.
- A spare set of batteries kept in the case, not the van door pocket - cold UK mornings drain them faster than most people expect.
What to do next
Once you're confident reading grade with a receiver, the next skill worth learning is setting datums correctly before the laser even goes up - get that wrong and no receiver will save the reading. Grettz has been servicing and calibrating this kind of kit for 45 years, and the pattern is always the same: bad datums, not bad lasers, cause most on-site disputes.
FAQ
What is a laser detector used for with a rotary laser?
A laser detector, or receiver, reads a rotary laser's spinning beam electronically and confirms exact elevation with a beep and centre light. It's essential outdoors or on large sites where the beam itself is too faint to see by eye.
Can I use a laser detector without a rotary laser?
No, a receiver only works when paired with a compatible rotating or line laser producing a beam it can detect. It has no function on its own.
How far can a laser detector pick up a rotary laser beam?
Working range depends on the specific laser and receiver combination, the beam colour, and outdoor light conditions. Green beams generally hold visibility further in daylight than red beams from the same class of unit.
Is a green beam rotary laser better than red for outdoor detector work?
Green beams read more clearly in bright daylight, which matters most when you're relying on the human eye as a backup to the receiver. The Grettz G80 uses a green beam for exactly this reason on larger outdoor sites.
How do I know my rotary laser and receiver are calibrated correctly?
Run a short on-site drift check by comparing readings at two points a known distance apart before starting the job. Grettz's calibration guide covers the full 60-second check and what a proper Service 72 calibration includes.
What's the difference between fine and wide receiver modes?
Wide mode has a larger detection window so you can scan a rod quickly to find the beam. Fine mode narrows that window for the precise final reading once you're already close to level.
How much does a rotary laser detector cost in 2026?
Buying a receiver bundled into a kit is usually more cost-effective than sourcing one separately. The Grettz G60 kit at £374.99 includes an LR1 receiver, tripod and staff, against a higher combined cost for the parts bought individually.
Can one receiver work with any rotary laser brand?
Receivers are generally compatible across brands as long as the beam type and detection range match, but pairing a kit's own receiver, like the LR1 supplied with Grettz rotary lasers, removes any guesswork.
One last thing
Most missed grades don't come from a faulty laser or a cheap receiver - they come from someone trusting the beep without checking the centre light too. The two should agree every time; if they don't, stop and re-level before you mark another point.
